Overview

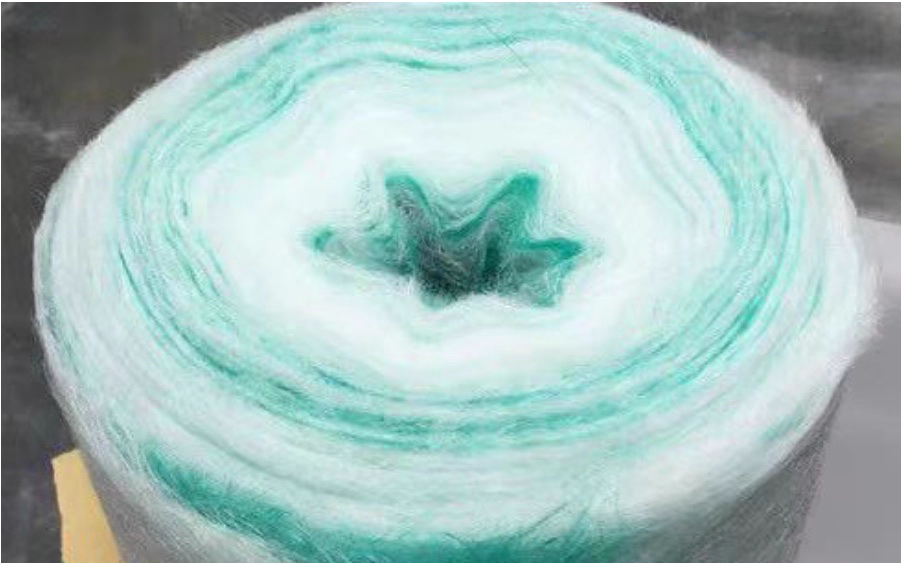

Paint mist filter cotton is also known as ground cotton, paint blocking net or glass fiber cotton. It is made of ultra-fine glass fiber, one side is green and the other side is white. It is mainly used in various types of spray booths and spray equipment to filter and collect the mist paint generated during the spraying process and reduce the paint smell of the exhaust air to meet environmental emission standards. Feierte supports non-standard customization. Paint mist filter cotton (Paint Mist Filter) is also a special filter material with gradient density fiber structure. It is specially designed for spray workshops, paint booths and other scenes to intercept paint mist particles, volatile organic compounds (VOCs) and overspray paint. Through the dual effects of physical interception and adsorption, it can effectively reduce the load of the exhaust gas treatment system and protect the back-end activated carbon or RTO equipment. It is mainly used in automobile manufacturing, furniture painting, metal surface treatment and other industries.

Core functions and technical parameters

1. Efficient paint mist interception

- Multi-layer gradient filtration: Multiple layers of glass fiber are stacked and staggered, which can cover a large area with paint mist.

- Filtration efficiency: ≥95% interception rate of paint mist particles (GB/T 6165-2021 standard test).

2. High temperature resistance

- Temperature: can be used in environments ≤170℃.

3. Low replacement cost

- High dust holding capacity: gram weight 220-350g/㎡, thickness 30mm, 50mm, 60mm, 80mm, 100mm optional, and many fiber layers, which can reduce the frequency of replacement;

- Easy to replace: just remove the old one, cut the new paint mist filter cotton and insert it into the frame (or lay it in rolls).

Application scenarios and industry cases

1. Automobile manufacturing

- Vehicle spraying line: installed on the top of the dry spraying room, intercepting overspray mist, and the supporting water curtain system increased the efficiency by 40%;

- Case data: A car company uses 350g/㎡ filter cotton, and the paint mist escape volume is reduced from 15mg/m³ to 2mg/m³, saving more than 300,000 yuan in hazardous waste treatment fees annually.

2. Furniture coating industry

- UV spraying workshop: filter UV-cured paint particles, protect exhaust fan blades, and reduce equipment maintenance frequency;

- Humidity adaptability: maintain structural stability in an environment of 60-80% RH to avoid fiber boarding during the rainy season in the south.

3. Metal surface treatment

- Electrostatic spraying line: with a metal mesh pre-filter, the life of the main filter cotton is extended by more than 2 times;

- Anti-static model: surface resistance ≤10⁶Ω, to prevent static electricity accumulation from causing dust explosions.

Installation and maintenance guide

1. Selection recommendations

- When the paint mist concentration is low and needs to be replaced frequently: choose a thickness of 30-60mm;

- When the paint mist concentration is high and it takes a long time to replace: choose a thickness of 80-100mm.

2. Installation specifications

- Disposable gloves or rubber gloves need to be worn during installation. Because the glass fiber filter material is brittle when folded, gloves need to be worn for protection to prevent the glass fiber from piercing the skin.

- After installation, clean up the sanitation and clean up the broken glass fiber to prevent flying catkins.

3. Maintenance points

- When the paint mist cotton absorbs enough paint mist and the thickness becomes thinner, it needs to be replaced as soon as possible.
